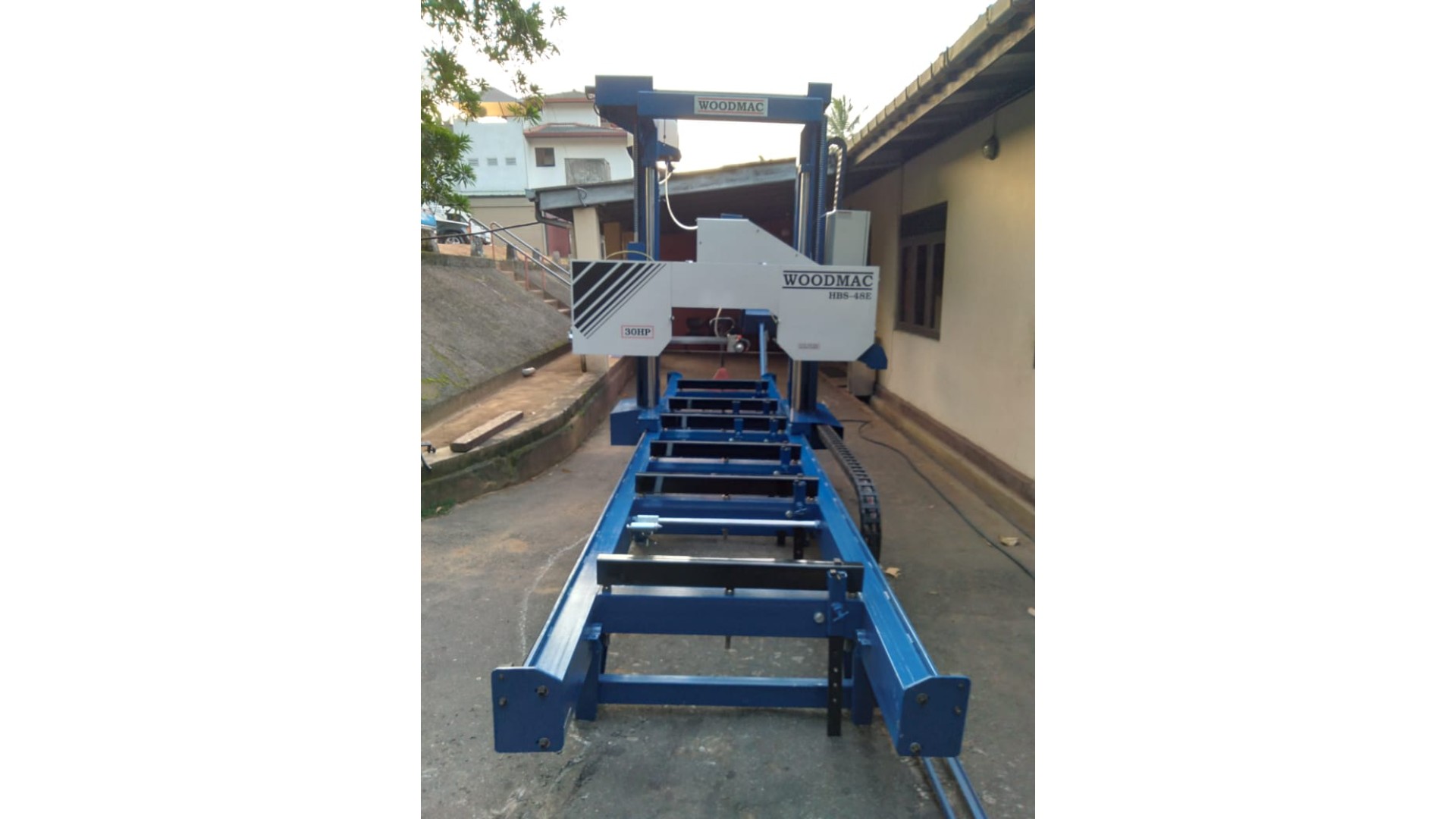

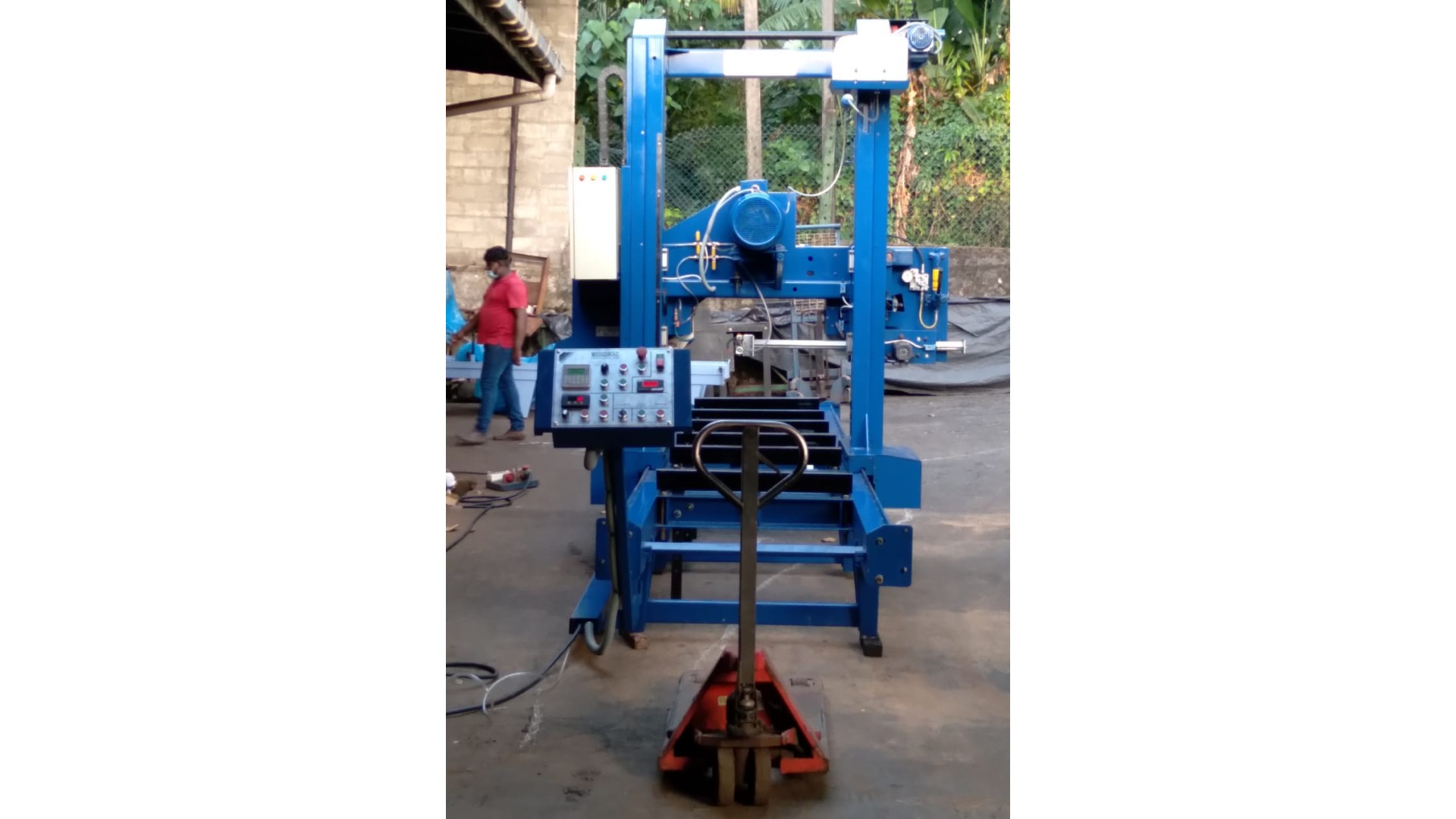

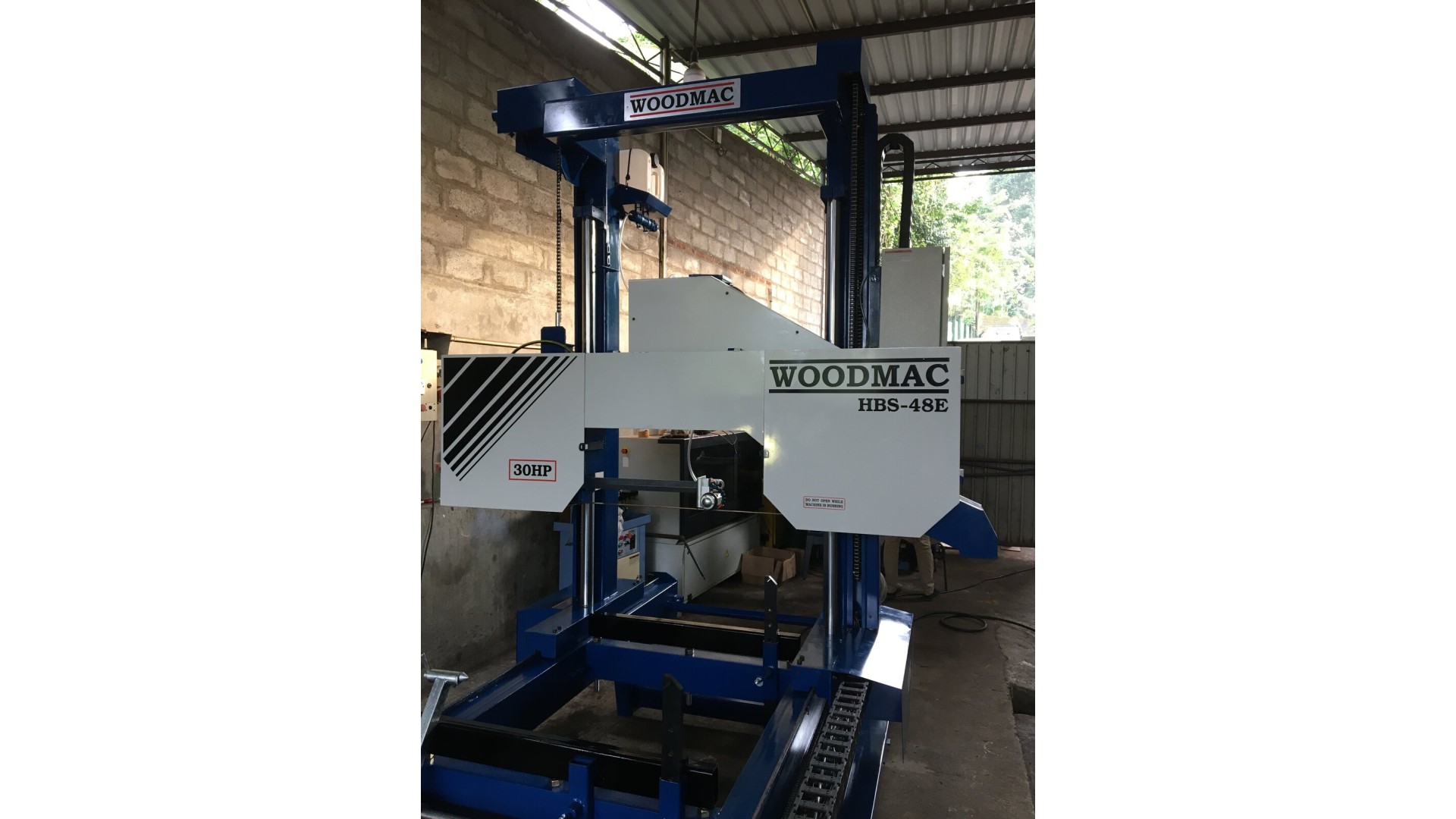

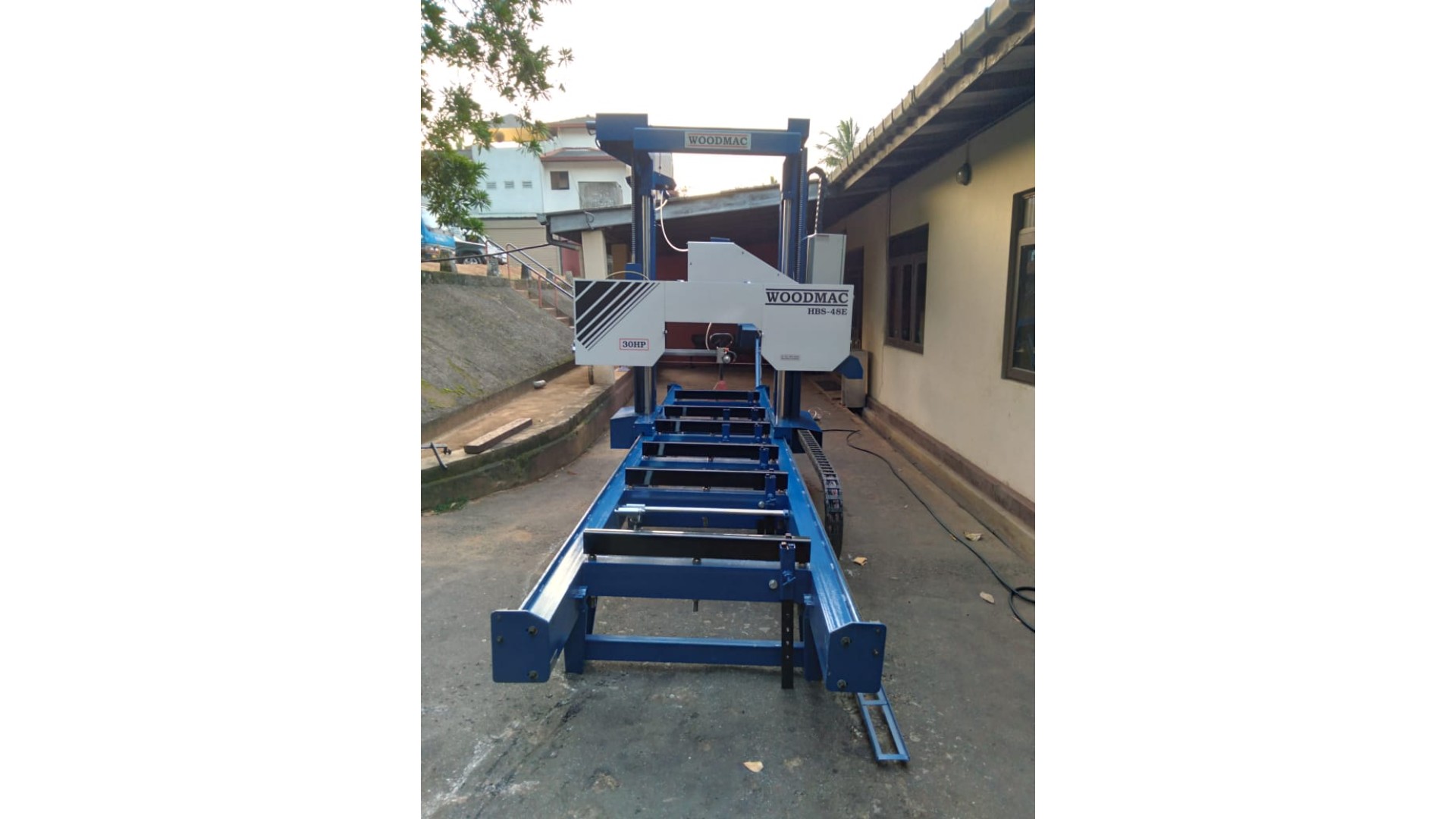

Horizontal Band saw
The latest generation high quality Saw mill Machine genuinely designed and manufactured by Alcobronz. WOODMAC Saw mill have a proud heritage of 40 years in the manufacture of machinery and machine components. There is no doubt that the Experience gathered through years together with the modern technology has become an integral embedded part of WOODMAC Saw mills.
Machine is covered by a 12months Warranty.
Distance Between Pillars : 1055mm
MAX Distance Between Blade Guides : 875mm
MAX Cutting Hight of the Blade : 1090mm
MAX Cutting Height : 1410mm
Standard Log Length : 15.5ft
Length of Log Frame : 19ft
Main Motor : 30Hp
MAX Feeding Speed : 30m/min
Reverse Speed : 30m/min
Feeding Motor : 1Hp x 2
Thickness Setting Motor : 1Hp
Length Saw Blade : 4820mm
Width of Saw Blade : 25-41mm
Overall Machine Size(Standard) : 19ft x 7.5ft
Net Weight : 2200kg
