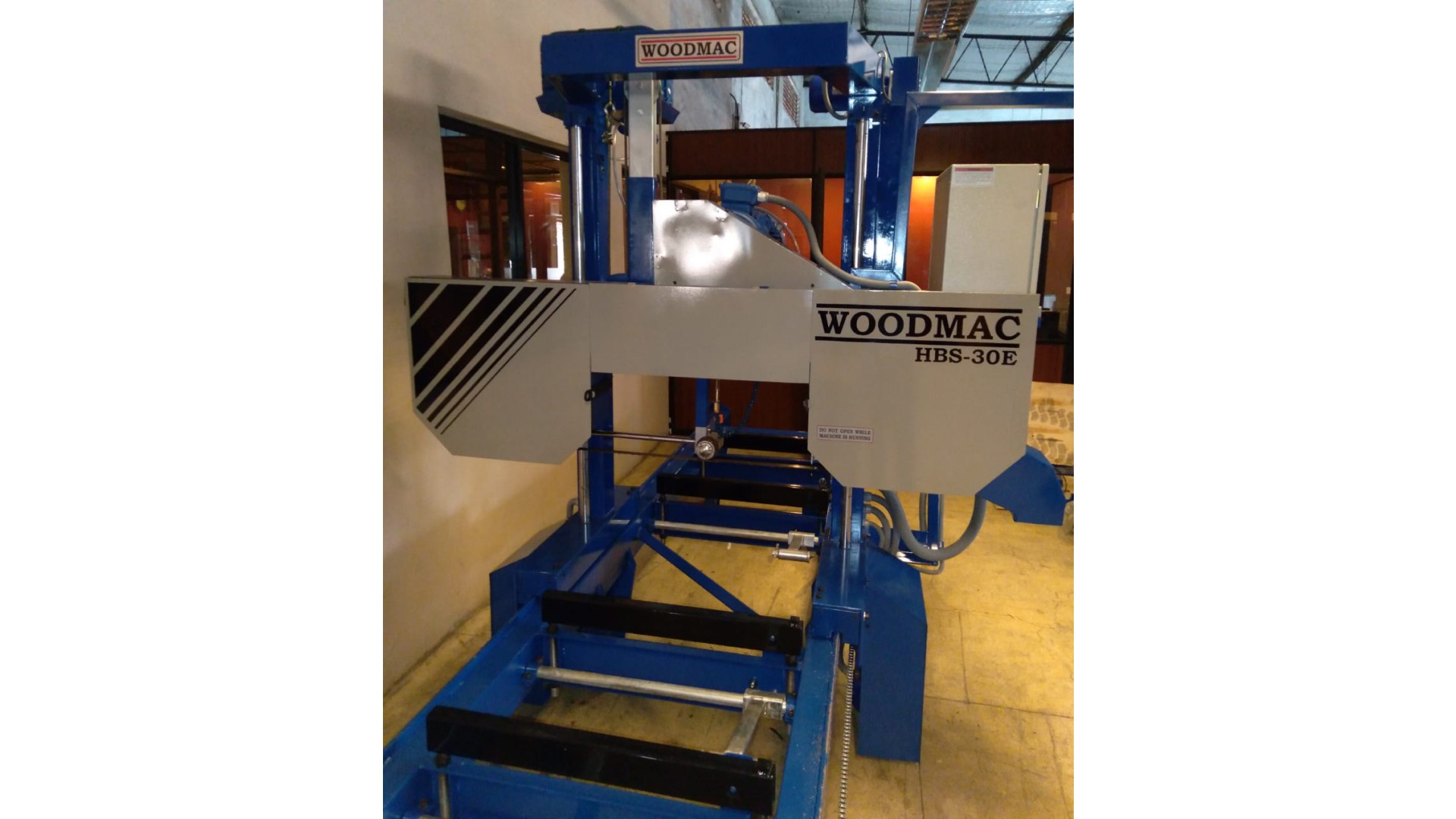

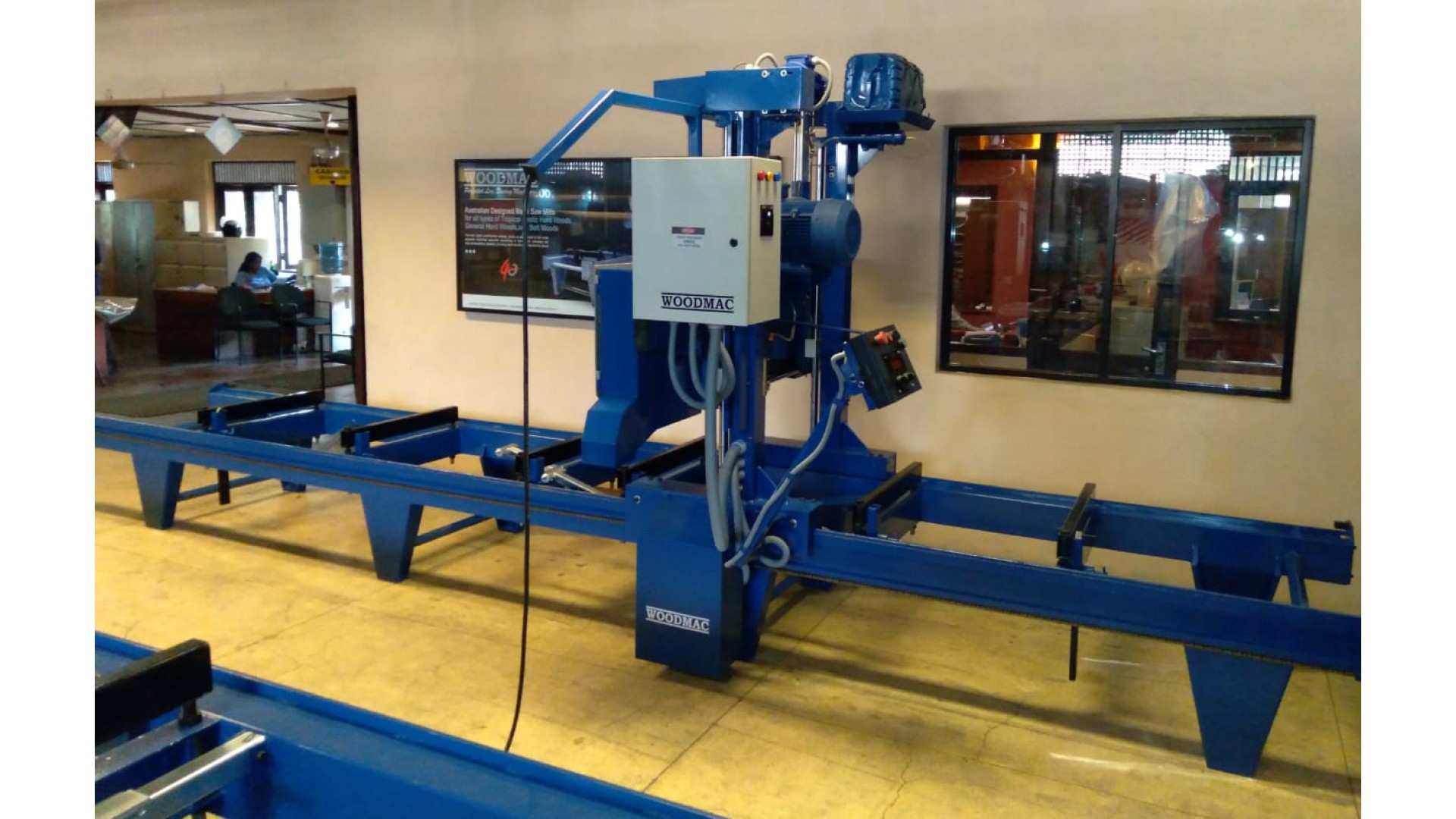

Horizontal Band saw
The latest generation high quality Saw mill Machine genuinely designed and manufactured by Alcobronz. WOODMAC Saw mill have a proud heritage of 40 years in the manufacture of machinery and machine components. There is no doubt that the Experience gathered through years together with the modern technology has become an integral embedded part of WOODMAC Saw mills.
Machine is covered by a 12months Warranty.
Distance Between Pillars : 790mm
MAX Distance Between Blade Guides : 660mm
MAX Cutting Hight of the Blade : 807mm
Standard Log Length : 16ft
Length of Log Frame : 19ft
Main Motor : 15Hp
MAX Feeding Speed : 77ft/min
Reverse Speed : 77ft/min
Feeding Motor : 1Hp
Thickness Setting Motor : 0.25Hp
Length Saw Blade : 4013mm
Width of Saw Blade : 25-41mm
Overall Machine Size(Standard) : 19ft x 6ft
Net Weight : 1000kg
